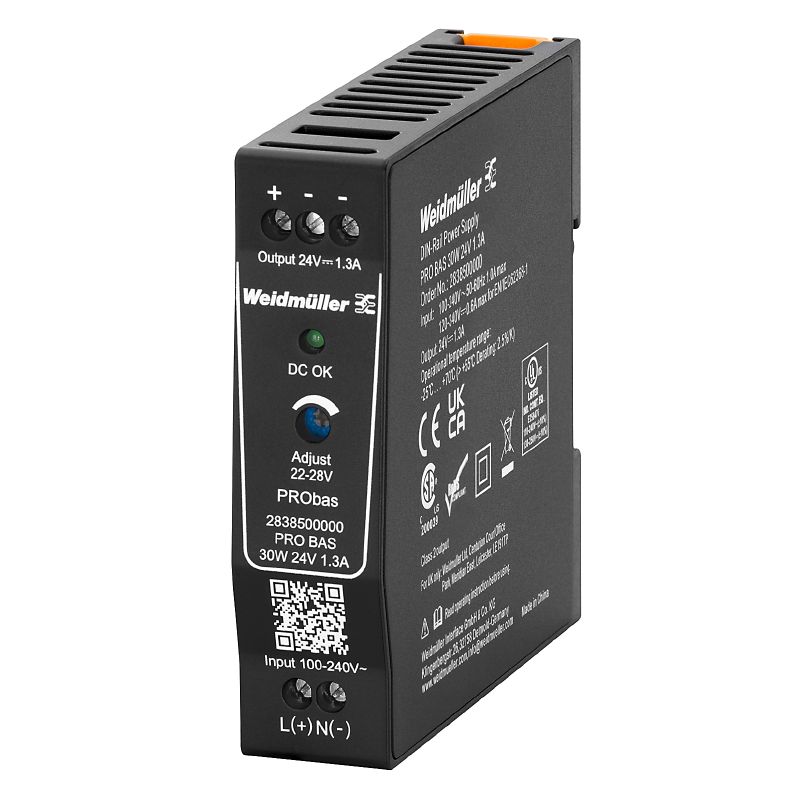

POWER SUPPLY PRO BAS 30W 24V 1.3A

AC input voltage range  85...264 V AC (derating at 100 V AC)

Connection system         Screw connection

Current consumption in relation to the input voltage

Voltage type      AC

Input voltage     230 V

Input current     0.33 A

Voltage type      AC

Input voltage     115 V

Input current     0.55 A

Voltage type      DC

Input voltage     120 V

Input current     0.29 A

Mains failure bridge-over time, min.       20 ms

Input voltage type           AC

Input voltage     120 V

Output current 1.3 A

Output voltage 24 V

Mains failure bridge-over time, min.       40 ms

Input voltage type           AC

Input voltage     230 V

Output current 1.3 A

Output voltage 24 V

Depth   85 mm

Depth (inches)  3.346 inch

Height   90 mm

Height (inches) 3.543 inch

Width    23 mm

Width (inches)  0.906 inch

Net weight         163 g

Storage temperature     -40 °C...85 °C

Operating temperature                -25 °C...70 °C

Humidity              5…95 % rel. humidity, no condensationight          163 g
